Importing Content

AEM offers the capability to easily import an existing site and convert its content to docx files.

Import Concept

If you copy the content of a web page by selecting Select All and Copy in the browser and paste the selection inside a Word or a Google Doc document, you will see that both programs can easily convert the copied DOM elements into their own basic document elements. An HTML h1 becomes text styled with Heading 1. Any span, div, or p element becomes a Normal paragraph. An image is inserted as an image. Etc.

Importing content with AEM follows the same pattern and offers the tooling to automate the process for multiple pages of a site to be imported and converted into Word documents.

1. You start from an existing web page (the DOM is the input).
2. You apply a set of transformations (to remove unnecessary elements, reorder or transform some of the elements, perform cleanup, etc.).
3. The importer creates a docx document for you.

For the importer, it does not matter if you work with Word documents on Sharepoint or Google Docs on Drive. The output of the AEM Importer is always docx file(s). Google Drive has an option to automatically convert the docx files (Settings > General > Convert uploads). When you upload the files to your drive, they will be converted automatically.

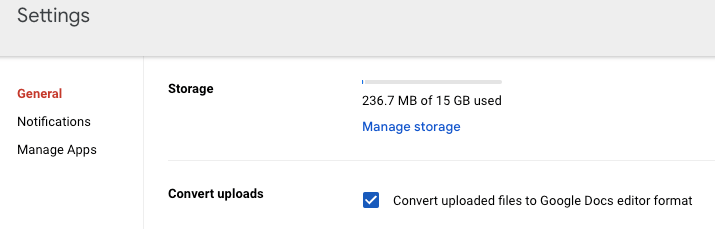

Check the "Convert uploaded files to Google Docs editor format" checkbox

Where to Start

While the content import is one of the first steps to be performed in a project, you need to be familiar with AEM, especially the desired structure of a Word or a Google Doc document.

It is good practice to make examples of each page type you wish to import by creating manual imports using copy/paste. You can thereby confirm that the authors find the resulting structures intuitive. This also allows parallelization of the content import with the development work for blocks and styling.

Structuring your content inside the documents in an intuitive manner is an important step in a AEM project. See the documents Markup, Sections, Blocks and Auto Blocking and David’s Model, Second take for more information.

A project is usually ready for an import roughly at the end of the tutorial. See the document Getting Started with AEM - Developer Tutorial for more information.

At the end of the tutorial, you can simply run the following command.

aem import

1. This starts the AEM Importer. You can run this instead of or in addition to aem up.
2. The helix-importer-ui project will be cloned under the tools/importer/helix-importer-ui folder.
3. The import proxy server starts and a new browser window opens at http://localhost:3001/tools/importer/helix-importer-ui/index.html

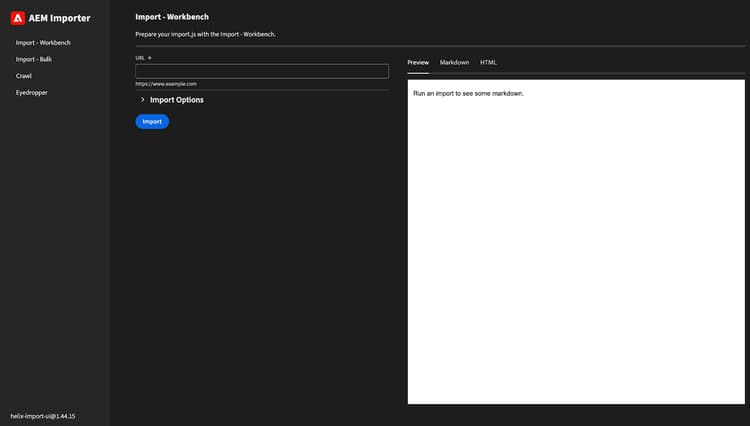

The AEM Importer

The AEM Importer

The AEM Importer offers a set of tools to support you to quickly import your website content.

Please note that only Chrome-based browsers are supported.

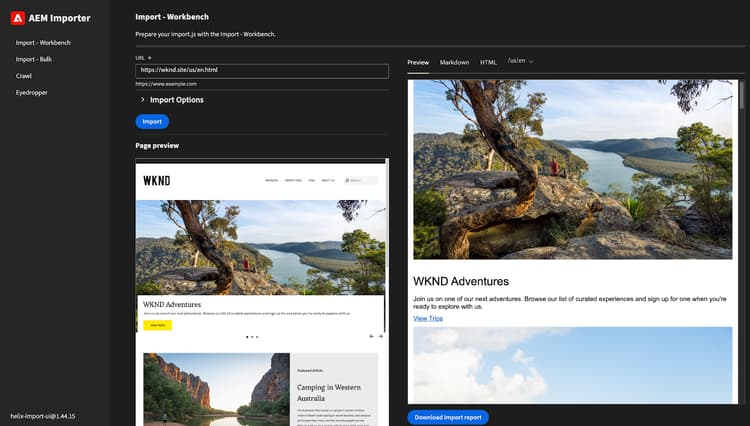

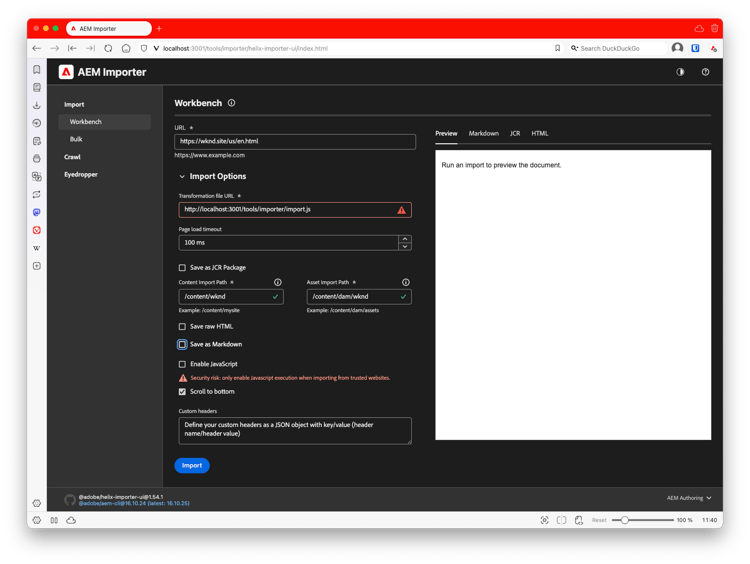

Import - Workbench

The Import Workbench is where you define and start your import process.

The first step is to provide a URL (https://wknd.site/us/en.html in our sample case) and click the Import button. The importer triggers the browser to ask you where you want to save the resulting docx file and for confirmation that the browser is allowed to read and write to that location. Once you confirm this, the import is performed.

A green banner at the bottom of the window will confirm a successful import. A red banner will report any errors.

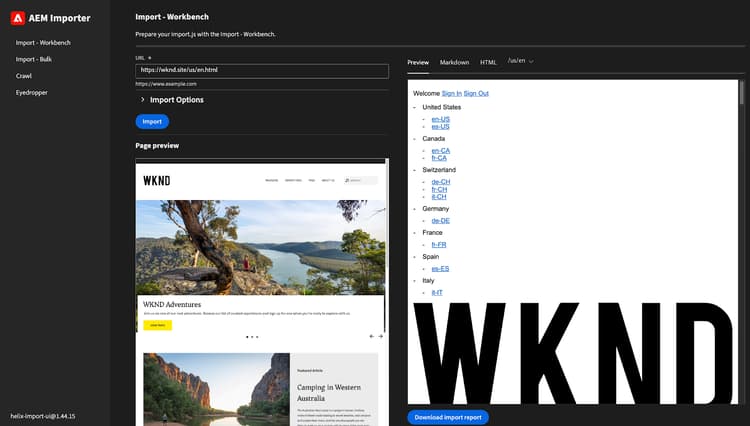

Preview the import result

The Page preview frame in the middle shows you the page you are importing. The page is loaded in an iframe and served via the local proxy server. While AEM tries to remove all security settings, it is possible that the page does not fully render like the original due to CORS issues. This is usually fine in 90% of the cases. In the remaining cases, there are different solutions that can be attempted such as starting your browser with disabled security settings. Please contact the AEM team for assistance in such cases.

The Preview panel shows you a result which is an approximation of how the Word document will appear.

The AEM Importer transforms the HTML into markdown as a first step and then the markdown into a docx file. The Markdown tab shows you the markdown from that intermediate step.

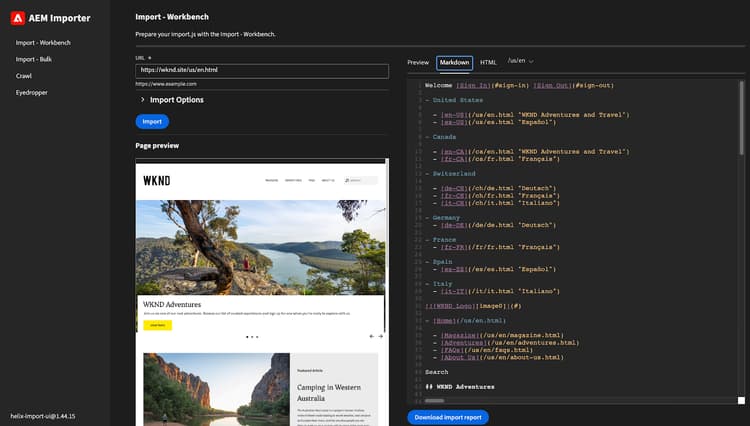

Check the Markdown source

The HTML tab shows the result of the first step of the transformation. It is the result of the DOM manipulation. This tab can be occasionally useful but can be disregarded the majority of the time.

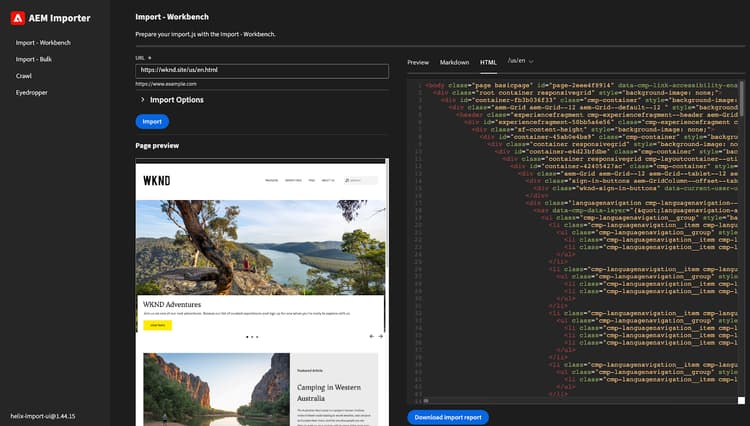

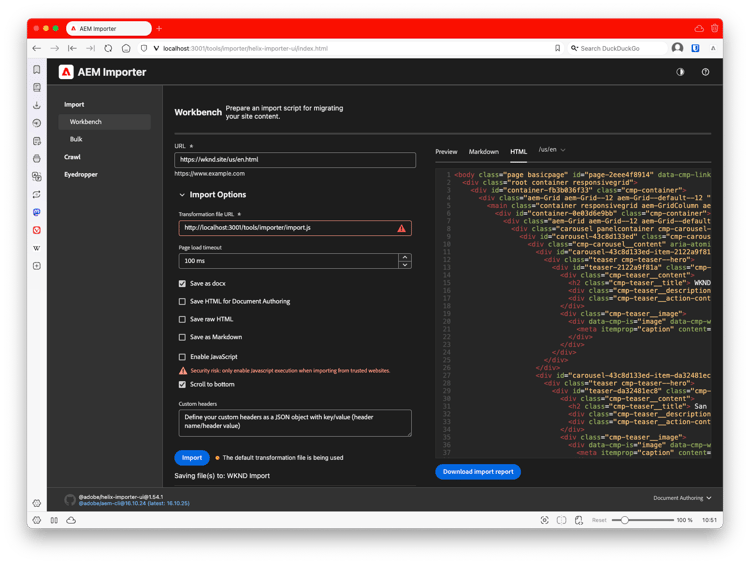

Check the HTML source

By default, the AEM Importer performs a few things for you automatically, like removing the head and cleaning up the HTML.

To further customize the import process, you can create a tools/importer/import.js file. This file defines all of your own rules to convert your content. If you change and save the import.js file, the import is automatically re-executed. In this way, you can preview your changes while you are developing the transformation rules.

It is highly recommended that you read the GitHub documentation for the importer to learn more and review code snippets to create your own import.js. Note that any rules you add to your own import.js file are in addition to the default behavior of the importer.

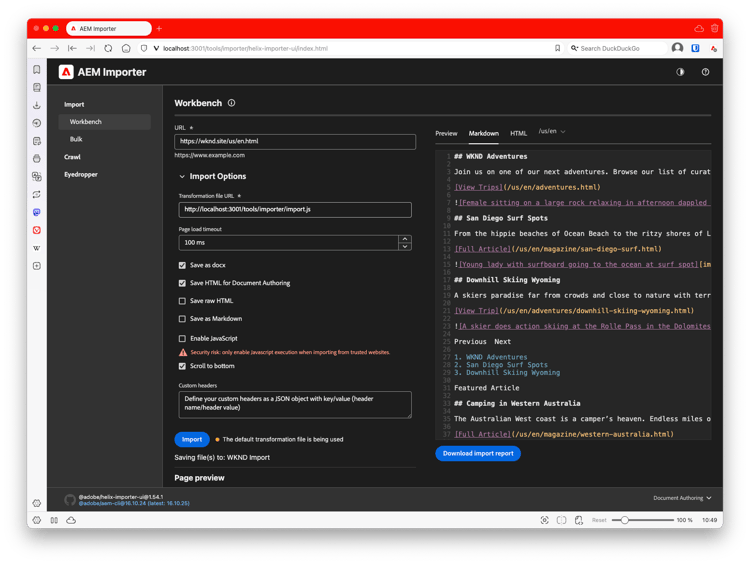

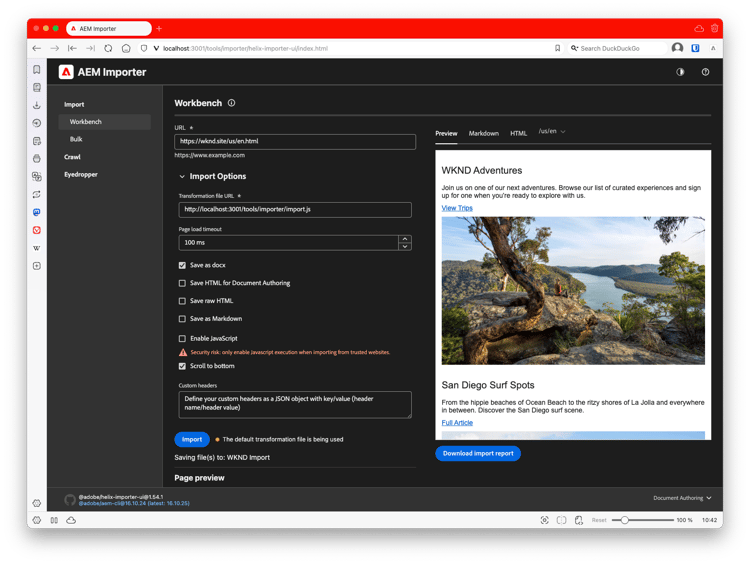

Finalized import

With a set of rules (such as to remove header and footer, reorganize the hero section, create blocks, insert metadata, etc.), you can create an import document that contains the essential content of the page and that fits perfectly in a Word document.

The import process has additional options which may be useful for your own import. Learn more in the GitHub documentation of the importer.

Import - Bulk

Once you are satisfied with the transformation and you have individually tested one or more files, you likely will need to bulk import many more. The Import - Bulk tool works nearly the same as the Import - Workbench tool with a few minor differences.

• Provide a list of URLs instead of one. Simply paste the list of URLs to import with one URL per line.
• The import.js file is not automatically reloaded as it is for one-off imports since if you are in the middle of importing 1000 URLs, you probably do not want the process to restart if you change the code.

Otherwise the options are the same for importing one page or performing a bulk import.

The amount of URLs you can import varies mainly based on the memory each page consumes. For example, a heavy SPA page usually does not release memory and the browser tends to crash (between 60 and 100 pages). In such situations, if you only need information which is in the markup, you can disable Javascript execution in the options and you will be able to import many more pages.

You can still batch the set of URLs to import if the number is still manually manageable. If you have a lot of URLs to import (10k+), contact the AEM team. There are several ways to automate the process without using a browser, which you can discuss with them.

Report

During the process, you can download an Excel report with the list of pages imported and some process information (import success, 404, 301, etc.). At the end of the process, this report file contains everything the importer has done and can be used for further analysis such as to find pages with errors. Or it can be used for page processing such as previewing and publishing.

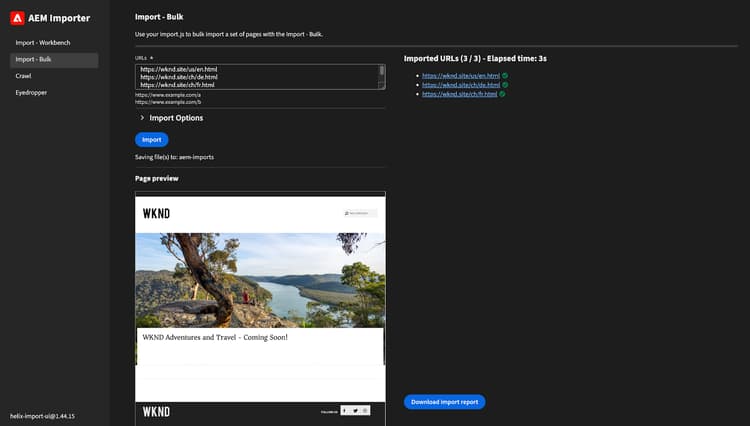

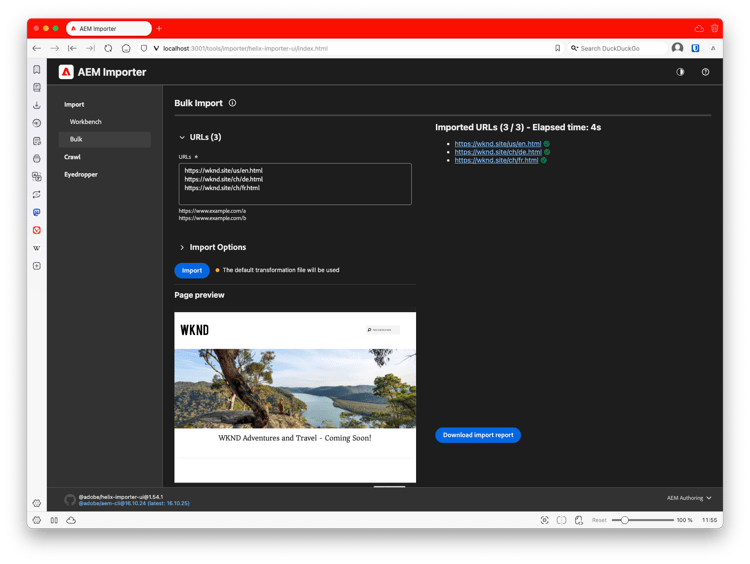

Bulk import

Crawl

If you are importing pages from a website and you do not have the full list of URLs to import, you can use the Crawl tool to build the list based on the sitemap or by crawling the site.

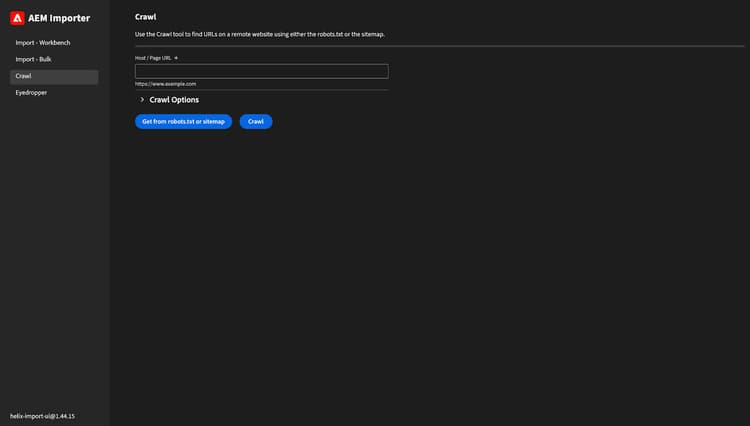

Crawl tool

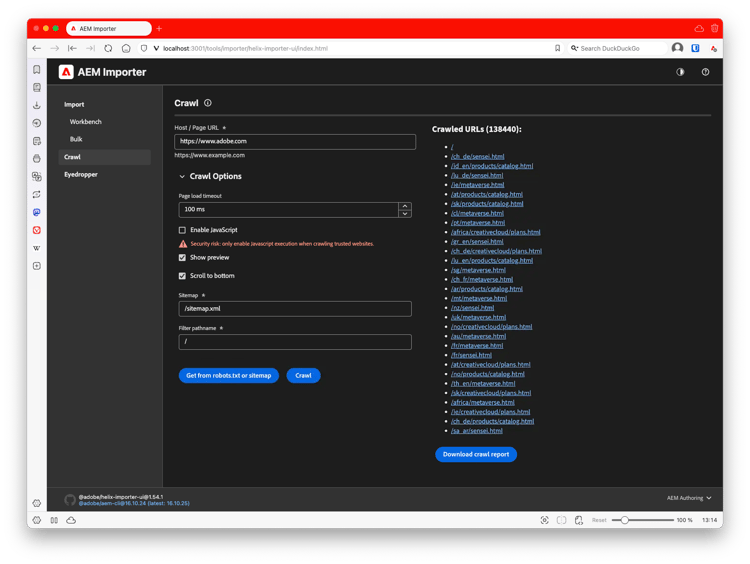

Get from robots.txt or sitemap

After providing a hostname and clicking Get from robots.txt or sitemap, the tool will first try to find sitemaps in the /robots.txt file. If no robots.txt is found, it will try the /sitemap.xml file (the default filename to search can be changed in the options).

If it finds a sitemap, it will collect all the URLs referenced in the siteamp and recursively follow the referenced other sitemap files. When the crawl is complete, you can use the download report button for the list of all unique URLs found.

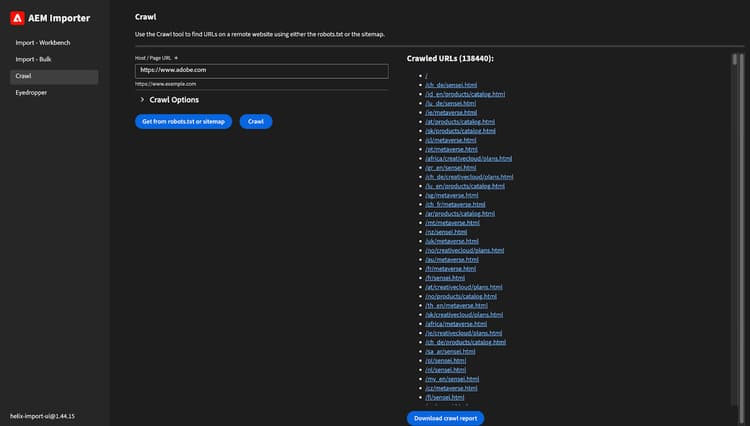

Sitemaps extracted URLs

You can use the Filter pathname option to only output the URLs under a certain path. The tool will still need to fetch all the URLs from all the sitemaps.

Crawl

After providing a URL and clicking Crawl, the tool will open the provided URL, try to identify the links on the page, and recursively visit all those links that are on the same host. It is basically navigating the site and collecting all the URLs it finds. For a large website, it can take a lot of time. If the website consumes a lot of resources / memory, it may even crash the browser. In such cases, hiding the preview and/or disabling the Javascript in the options can help.

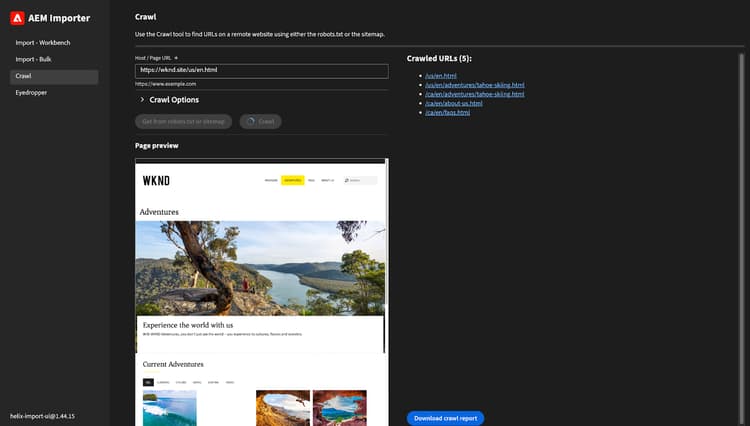

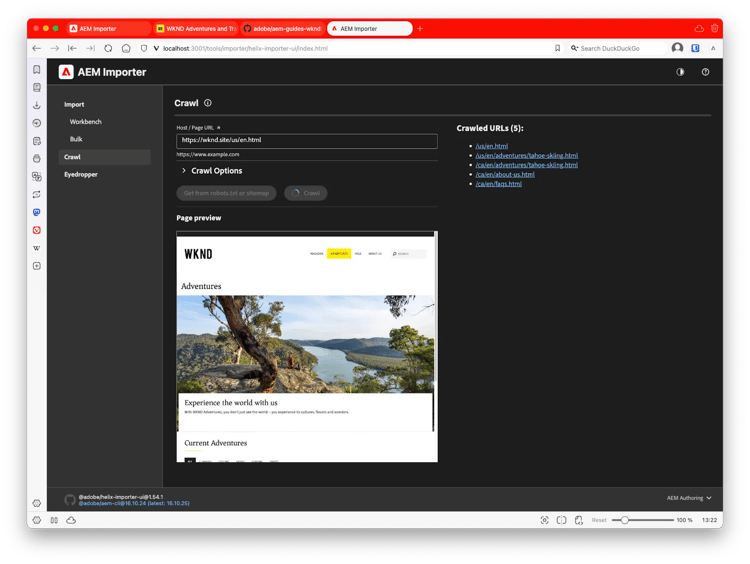

Crawling in-progress

You can use the Filter pathname option to only crawl URLs under a certain path. The provided URLs must then match this filter. This can be really useful to only crawl a subset of a large site.

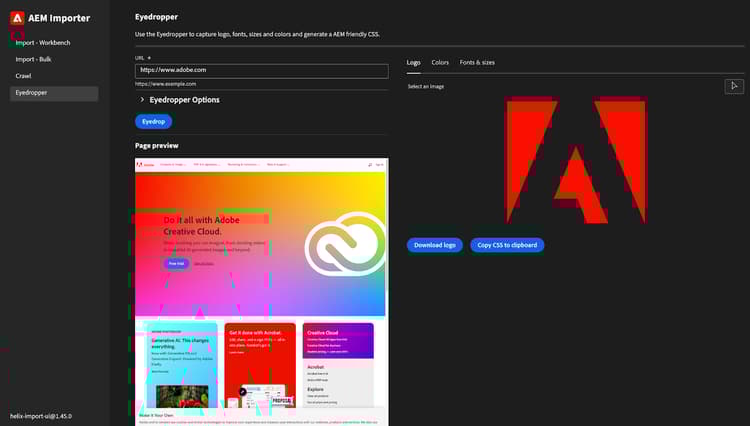

Eyedropper

The Eyedropper tool allows you to capture the logo and some of the key CSS information of a website. You just need to provide a URL and click Eyedrop.

Captured logo

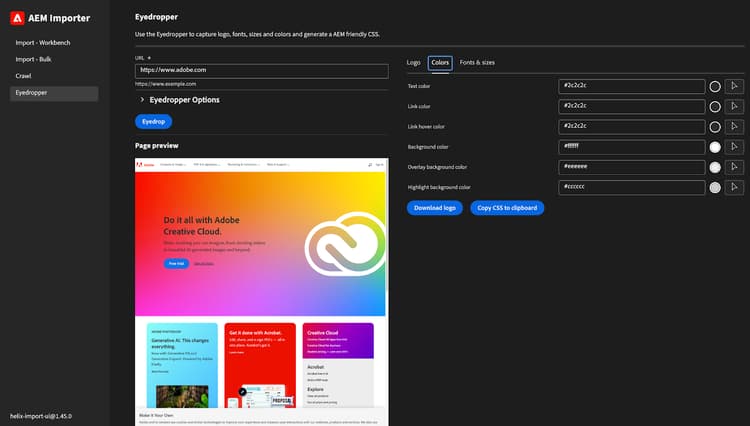

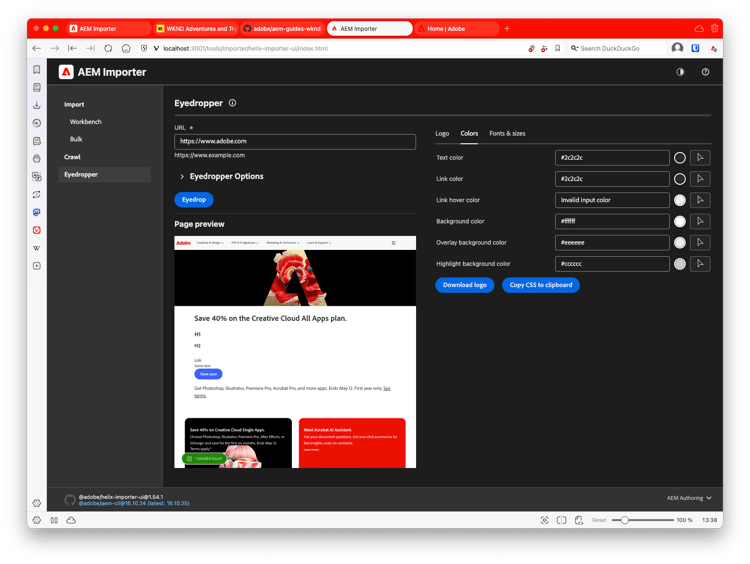

Captured colors

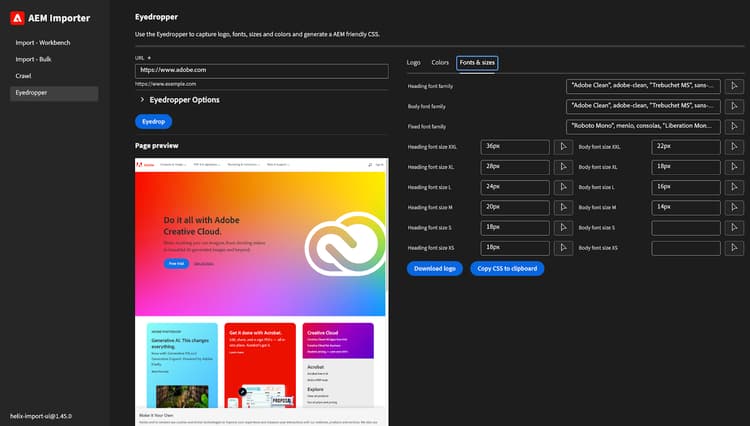

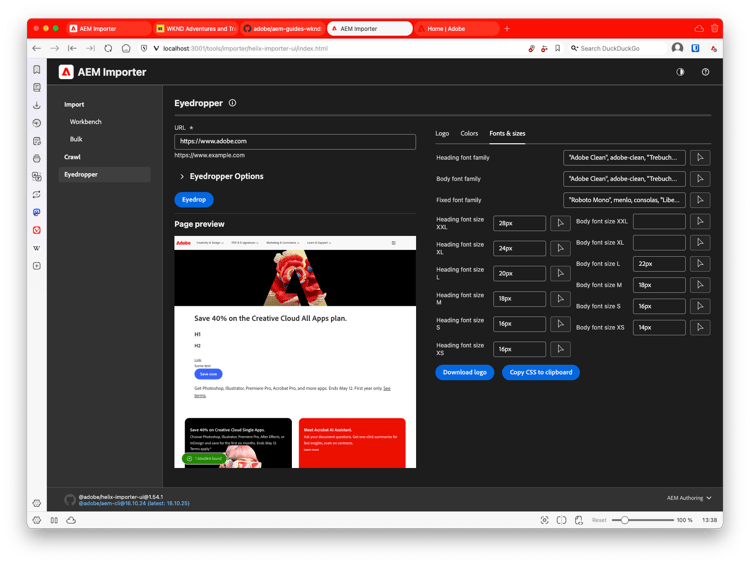

Captured fonts and sizes

Clicking the Copy CSS to clipboard button copies all gathered information in a CSS format that is ready to be pasted into your AEM CSS for further testing and customization.

This tool is a prototype and extracting the correct information is not straightforward. You need to review the output and adapt it to your project needs.
