Akamai Setup

The following screenshots illustrate how to use the Akamai Property Manager to configure a property to deliver content from AEM using your Akamai CDN setup. Essential settings are marked with a red circle.

Essential Property settings

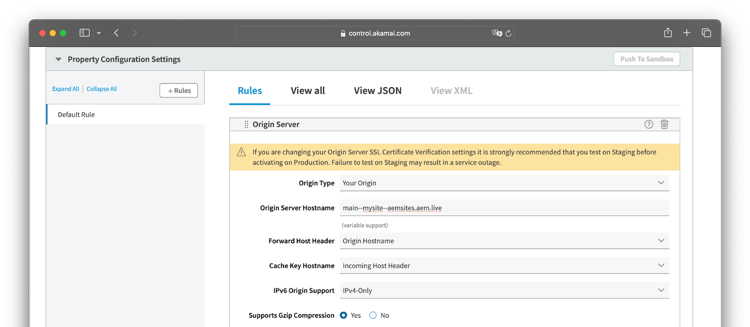

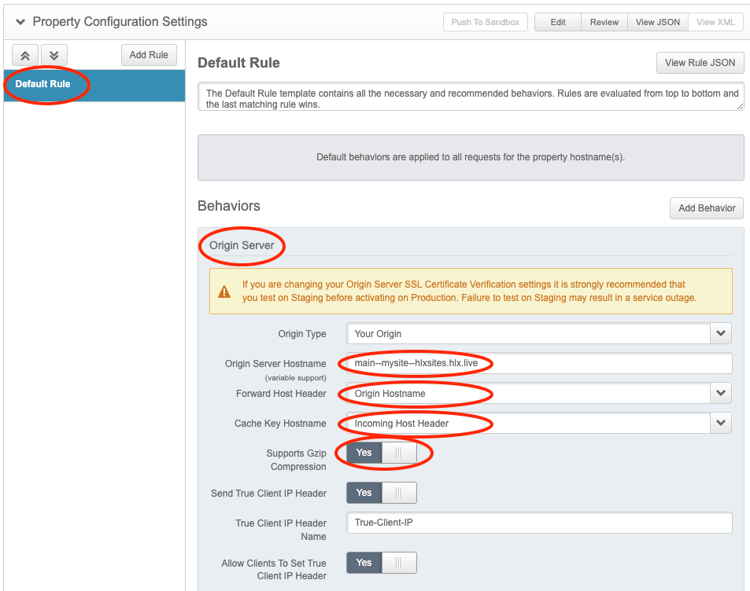

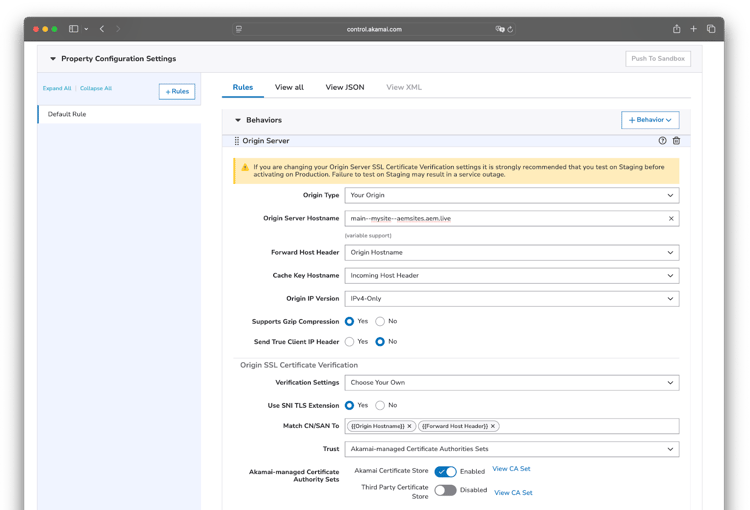

Origin Server

Configuration properties:

Name Value Comment
Origin Server Hostname main--<repo>--<organization>.aem.live Replace repo and organization with the values for your site.
Forward Host Header Origin Hostname
Cache Key Hostname Incoming Host Header
Send True Client IP Header No
Verification Settings Choose your own
Use SNI TLS Extension Yes
Trust Akamai-managed Certificate Authorities Sets
Akamai Certificate Store Enabled


⚠️Do NOT set Trust to Specific Certificates (pinning) as the certificate is periodically renewed and HTTPS traffic would be served with certificate errors due to the expired pinned certificate.

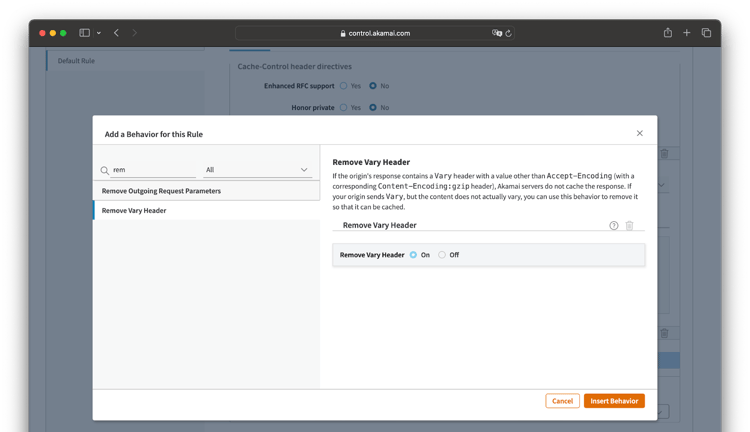

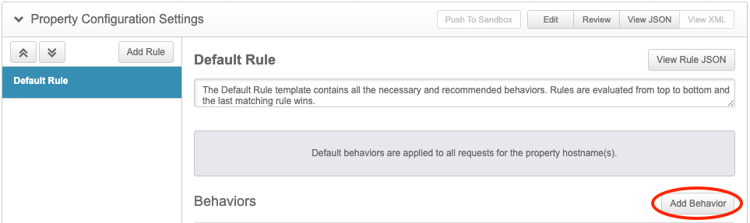

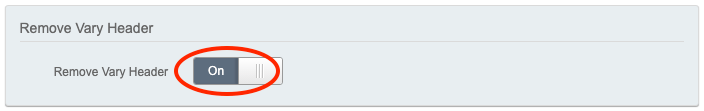

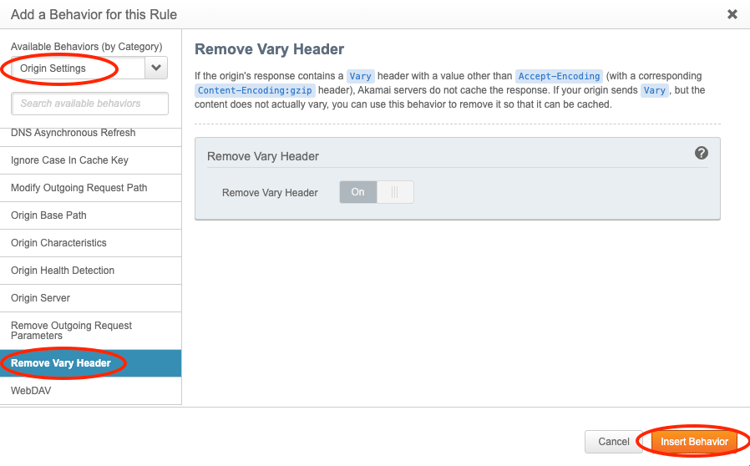

Add Behavior: Remove Vary Header

Configuration properties:

Name Value Comment
Remove Vary Header On

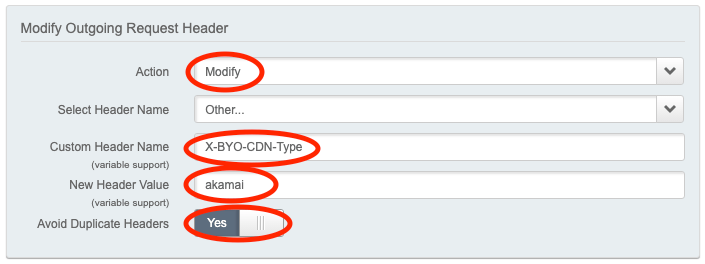

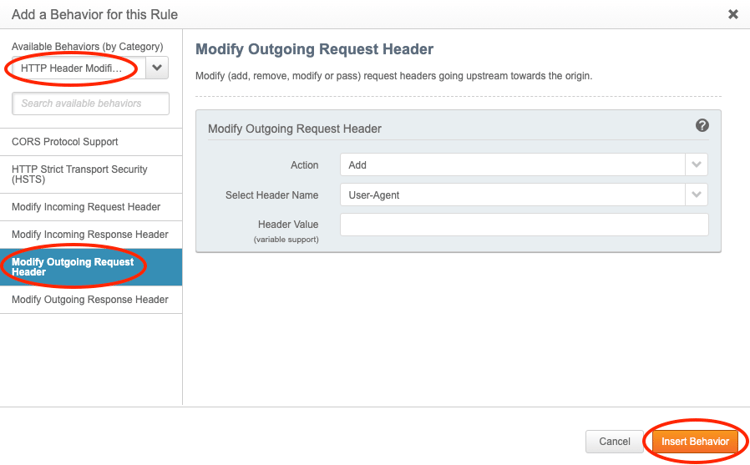

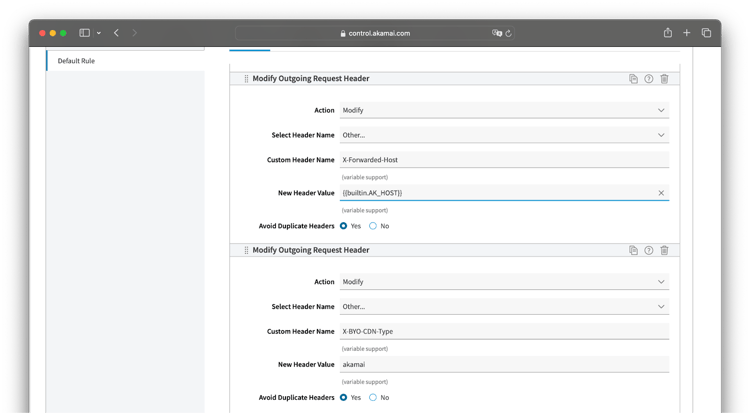

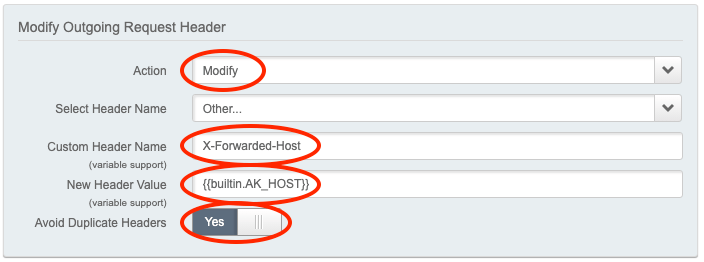

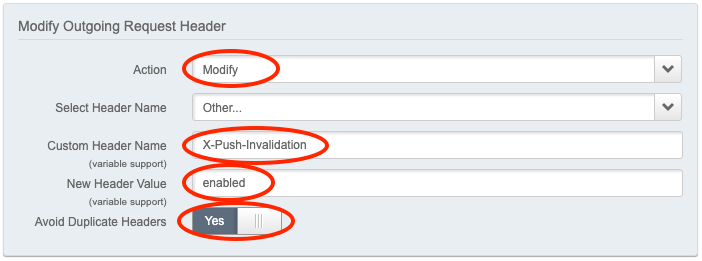

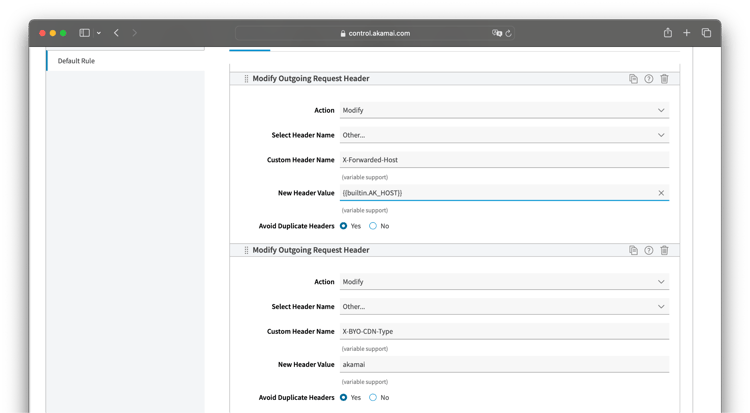

Add Behavior: Modify Outgoing Request Header

We will need a number of outgoing request headers, please see the table below. Keep the "avoid duplicate headers" setting enabled for all.

Configuration properties:

Action Select Header Name Custom Header Name New Header Value
Modify Other X-Forwarded-Host {{builtin.AK_HOST}}
Modify Other X-BYO-CDN-Type akamai
Modify Other X-Push-Invalidation enabled

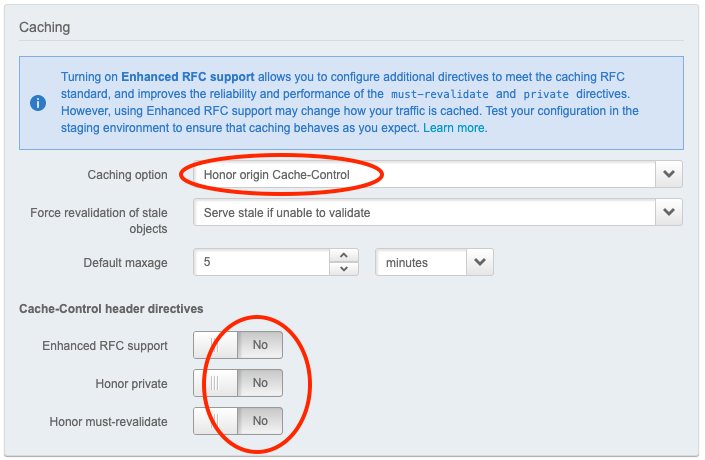

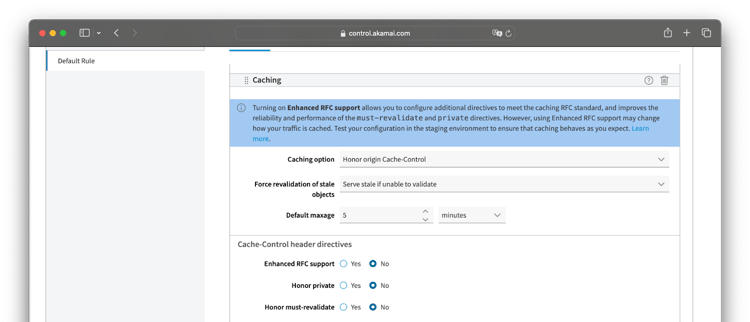

Add/Modify Behavior: Caching

Configuration properties:

Name Value
Caching Option Honor origin Cache-Control
Enhanced RFC support No
Honor private No
Honor must-revalidate No

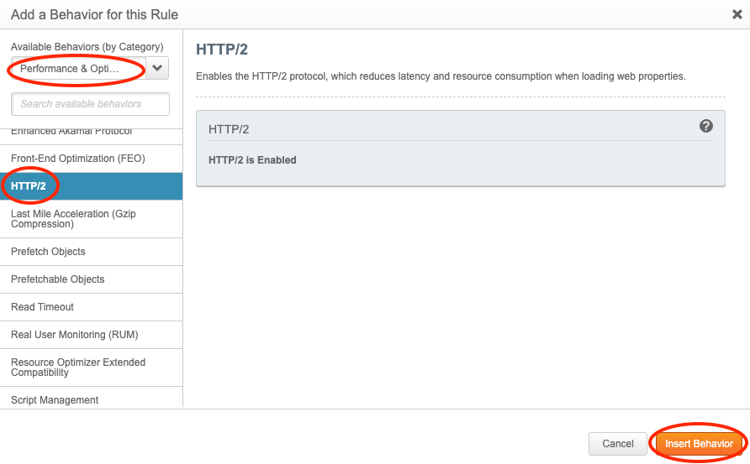

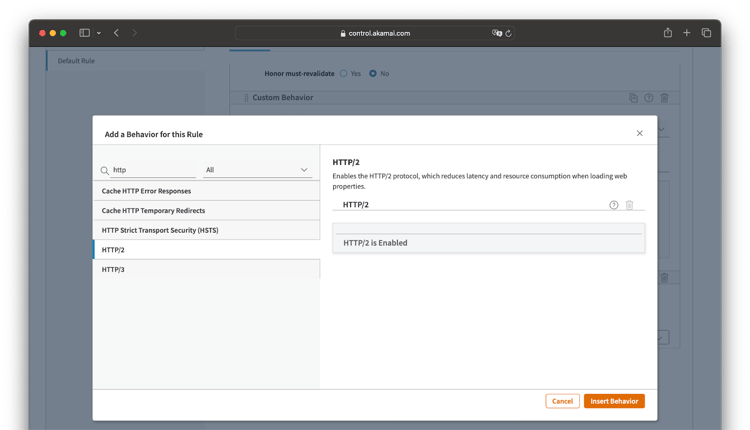

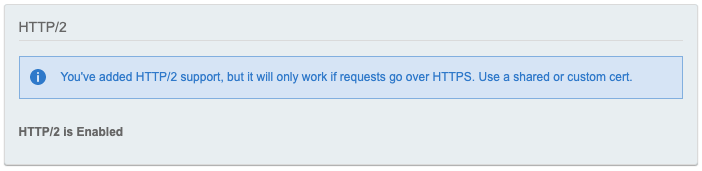

Add Behavior: HTTP/2

(Optional, but recommended)

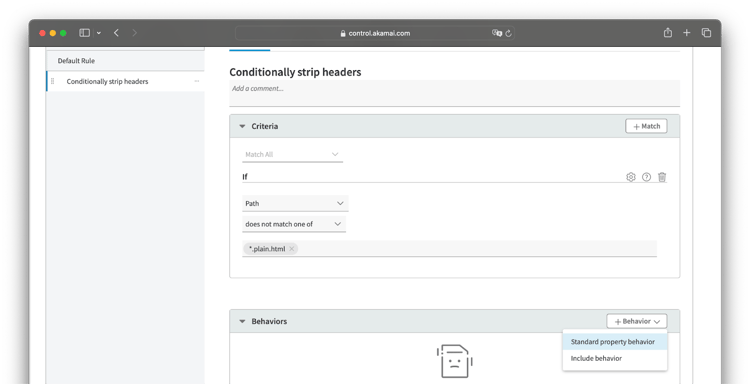

Add Rule: Modify Outgoing Response Header

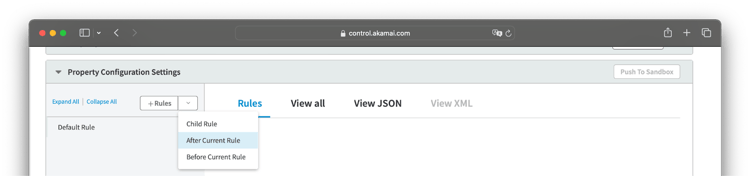

In the list of rules in the sidebar, click the button "+ Rules"

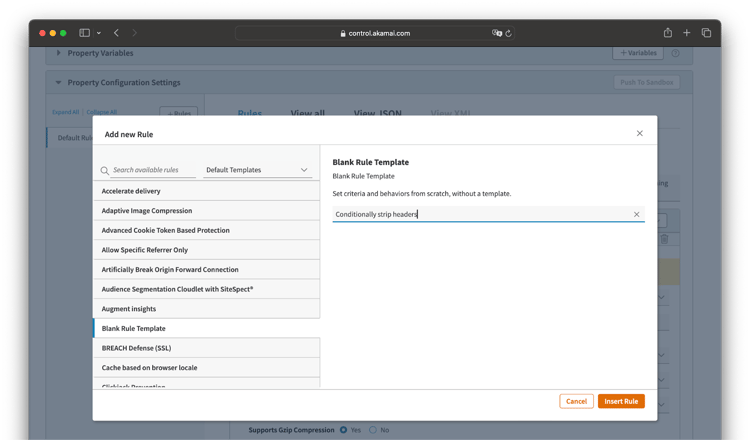

Select "Blank Rule Template", set a name such as "Conditionally strip headers" and click "Insert Rule".

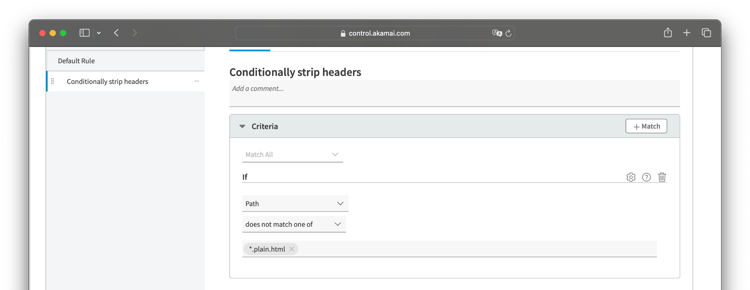

To set the criteria for the rule to be applied click "+ Match"

Then select:

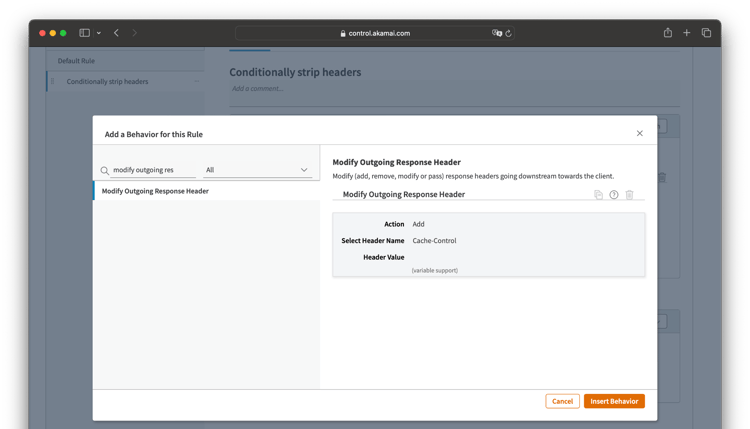

Click "+ Behavior" and "Standard property behavior" to set the behavior if a match is found

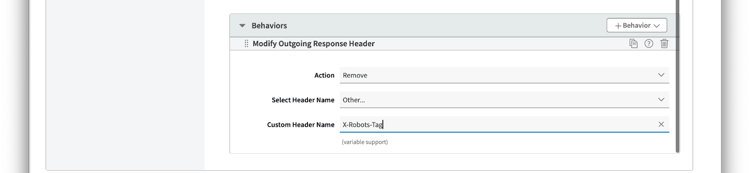

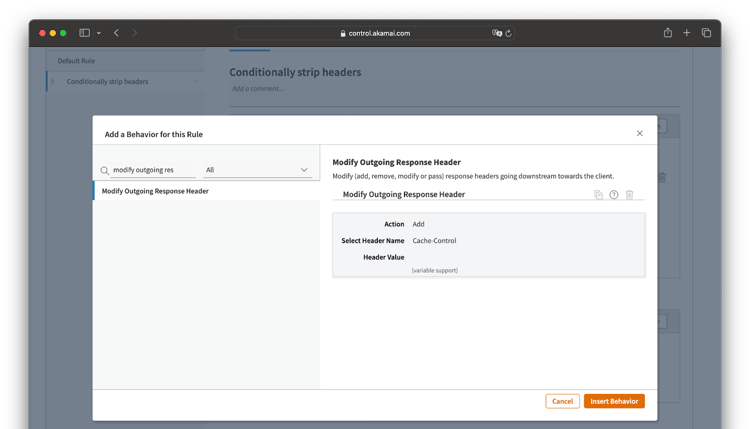

Then select "Modify Outgoing Response Header"

With following values:

These are all essential property settings for delivering content.

Optional: Authenticate Origin Requests

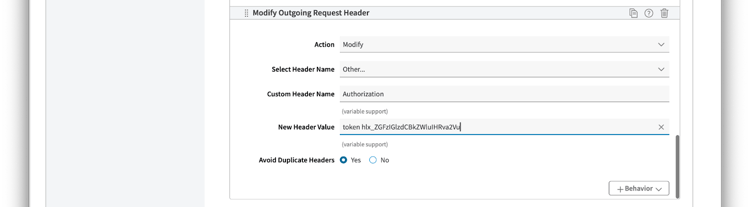

When using token-based Site Authentication, add the following under "Add Behavior: Outgoing Request Headers"


Configuration properties:

Name Value Comment
Action Modify
Custom Header Name Authorization
New Header Value token <YOUR_TOKEN_HERE> Replace with the site token value received in token-based Site Authentication
Avoid Duplicate Headers Yes

This setting will ensure that Akamai authenticates requests from your CDN to the AEM Origin, which validates the token received in the Authorization header.

Caveats

Do not enable Akamai mPulse Real Usage Monitoring. While the performance impact on most sites is negligible, for sites built for consistent high performance, enabling it will prevent reaching a Lighthouse Score of 100. In AEM, you have a Real Use Monitoring service built-in, so that dual instrumentation will be unnecessary and is strongly discouraged.

Also, do not enable Akamai Bot Manager Premier (also called “Transactional Endpoint Protection”) or similar Web Application Firewall offerings, as they markedly interfere with rendering performance and user experience. Your site on AEM is protected against bot attacks on the backend, so that this performance cost comes with negligible benefit.
